DESCRIPTION
Mismong
| modelo | SpeedyBee Nano 2.4GHz RX |
| Pangalan | ExpressLRS Receiver |
| dalas | 2.4Ghz |
| antena | T-antenna (54*78mm, 0.6g) |

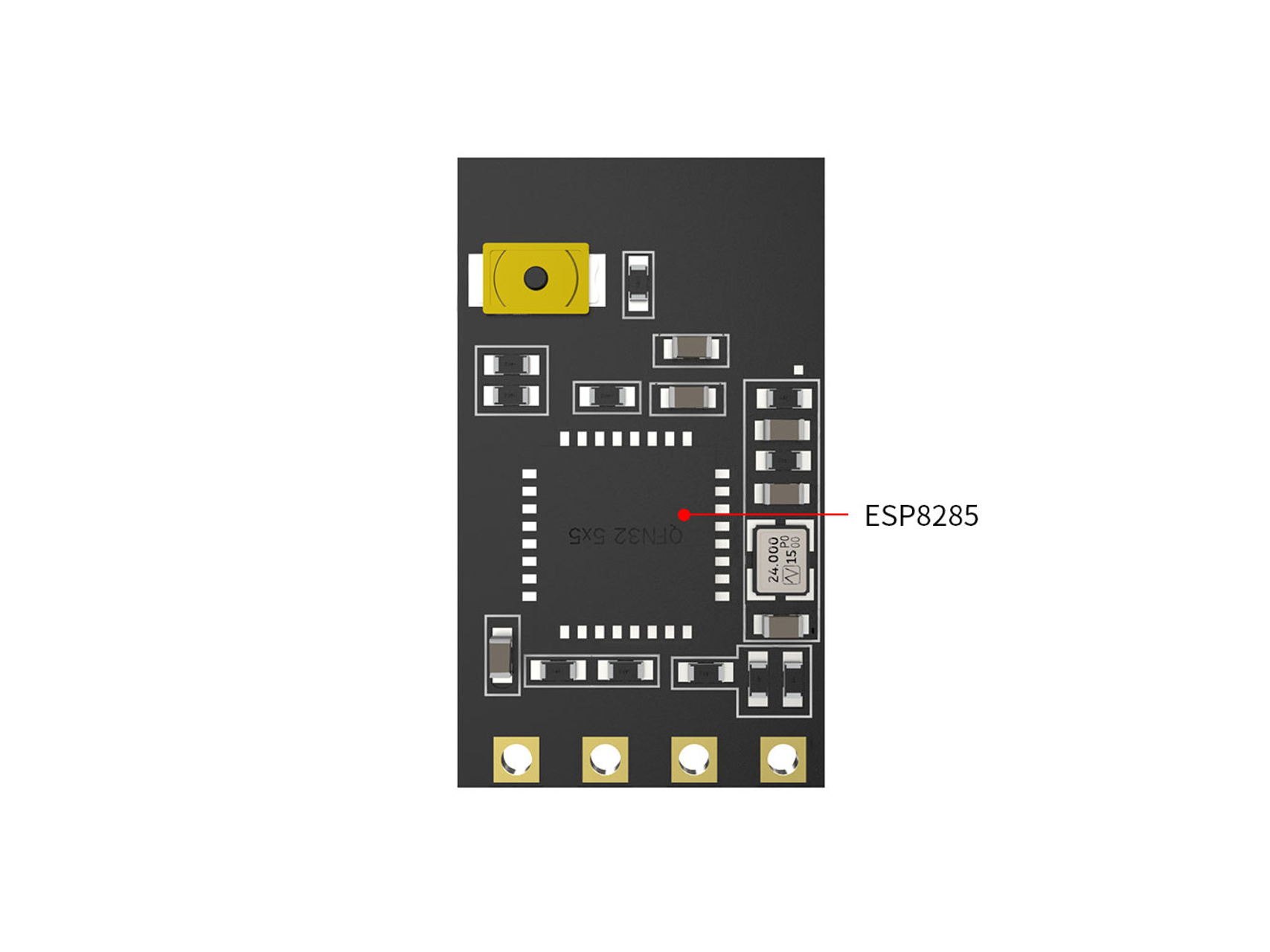

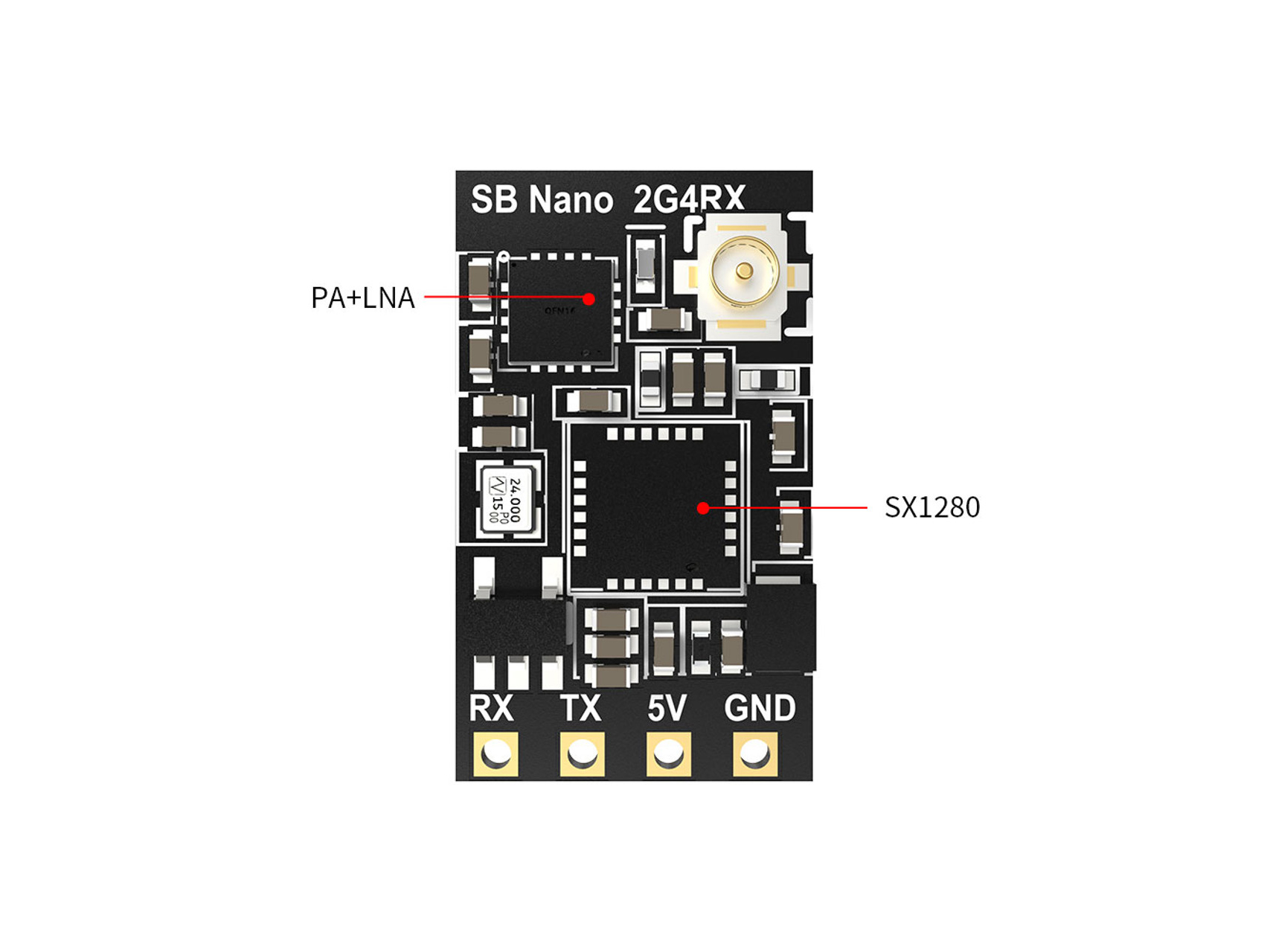

| Maliit na piraso | SX1280+ESP8285 |
| kapangyarihan | 100mW (Measured around 120mW) |
| input boltahe | 5V |
| Antenna connector | IPEX1 |
| timbang | 0.7 gram(without antenna) |
| sukat | 10.4mm * 18.4mm |
| Default Firmware | SpeedyBee Nano 2.4GHz RX 3.3.1 |
Ilaw na tagapagpahiwatig
| Double red blinking | umiiral |
| Slow red blinking | powering up but unlinked, no packages received from the transmitter |
| Solid na pula | receiver is connected, with signal received |
| Fast red flashing | Wi-Fi is turned on, and updating via Wi-Fi is available |
PS.
| To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds |
| Quick to cut off the power 3 times, it enters the binding mode |
